General Specifications

Length Overall

18-9

Max Beam

7-0

Steps

Two Sponson Steps

Deadrise

13.5 Degrees Aft
35 Degree Entry

Fuel

80 Gallons (Standard)
Twin 40 Gallon Fuel Cells, one per sponson

Running Conditions

Full Speed: 0 - 1-6
Cruise:  0 - 2-6

Target Speed

65 mph.

Construction Specifications

Construction

Fiberglass Composite
(Epoxy FRP)

Hull

Epoxy FRP

Deck

F/G Composite with Kledgecell Core.

Transom

Synthetic 1.75 Core, F/G Composite, Epoxy

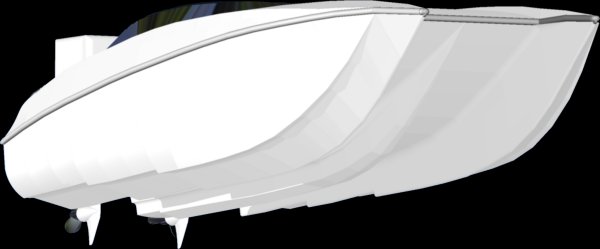

Cat 189 airborne (three dimensional model)

Custom Options

Seating

2 Bolsters Forward.
Bench Aft (Optional)

Rear Deck

Covered rear deck which can be removed for additional seating.

Storage/Cuddy

The interior can be finished as either a small cuddy or as storage space for skis and water equipment.  Additional storage space is available under the cockpit floor in the sponsons and under the side decks.

All Specifications are preliminary and subject to change as the project continues to progress.   The site will be updated as the 189 is built.   All information and images are ©1998-1999 Island Design
